5. nov 2016, 15:03
#240336
Har et spørgsmål ang . MAG254 kan den vise danske tv kanaler.
Har ikke selv noget kendskab til mag254, har waoo og AIRTEIS 7410X BOX.
The MAG254 STB is integrated with the content protection systems Secure Media. The solution supports remote access, monitoring and set up (partly via JavaScript API).
MAG254 is a unique open platform. You can make changes to our Set-Top Box software as well as integrate with other developers’ software.

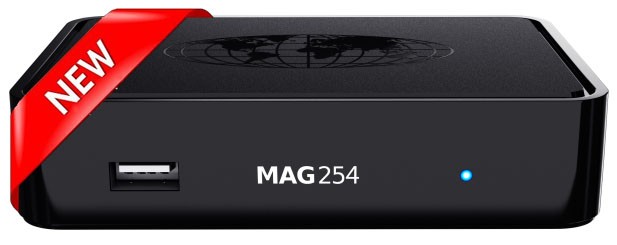

MAG254 front side
MAG254 back side
TECHNICAL SPECIFICATIONS [EN]
Width/depth/height, (mm) 127/87/30
Weight, g 190
Processor STiH207
RAM 512 Mb
Flash memory 256 Mb
Operating system Linux 2.6.23
Built-in Media Portal with WebKit-based IPTV-functionality
HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3;
XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1;
JavaScript ECMA-262, revision 5;
Media JavaScript API; C layer SDK
DRM option Secure Media
Middleware supported Stalker, Netup, SmartLabs, Beenius
Interfaces Audio output S/PDIF
HDMI 1.4-output
Composite + stereo A/V output
Ethernet 100 Mb/s
USB 2.0 (WiFi-adapter can be connected)
Sources of media content PC and NAS in local network
Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP)
USB-devices
Audio сodecs MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 layer III (mp3), MPEG-2 AAC
(optional), MPEG-4 AAC LC 2-ch/5.1ch (optional), MPEG-4 AAC+SBR 2-h/5.1ch
(optional), Dolby Digital (optional), DTS (optional)
Audio formats .MP3, MPA, M4A, WMA (optional), Ogg, WAV, AAC
Video modes
1080i, 1080p, 720p, 576p, 480р, PAL, NTSC
Video сodecs MPEG1/2 MP@HL, H.264 HP@level 4.1, MPEG4 part 2 (ASP), WMV-9 (optional), VC1 video, XviD; 3D and HD video supporting (up to 40 Mbit / s and above)
Video containers MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV
Image formats JPEG, PNG, BMP, GIF, RAW
Subtitles DVB, SRT, text MKV
Playlist formats M3U
Standard set MAG254/255 Set-Top Box, user manual, Mini jack cable to RCA (A/V), Power adapter 12V 1A, remote control, 2 AA batteries, packaging
Har ikke selv noget kendskab til mag254, har waoo og AIRTEIS 7410X BOX.
The MAG254 STB is integrated with the content protection systems Secure Media. The solution supports remote access, monitoring and set up (partly via JavaScript API).
MAG254 is a unique open platform. You can make changes to our Set-Top Box software as well as integrate with other developers’ software.
MAG254 front side
MAG254 back side
TECHNICAL SPECIFICATIONS [EN]
Width/depth/height, (mm) 127/87/30
Weight, g 190
Processor STiH207
RAM 512 Mb
Flash memory 256 Mb
Operating system Linux 2.6.23
Built-in Media Portal with WebKit-based IPTV-functionality
HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3;
XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1;
JavaScript ECMA-262, revision 5;
Media JavaScript API; C layer SDK
DRM option Secure Media
Middleware supported Stalker, Netup, SmartLabs, Beenius
Interfaces Audio output S/PDIF
HDMI 1.4-output
Composite + stereo A/V output
Ethernet 100 Mb/s
USB 2.0 (WiFi-adapter can be connected)
Sources of media content PC and NAS in local network
Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP)
USB-devices
Audio сodecs MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 layer III (mp3), MPEG-2 AAC
(optional), MPEG-4 AAC LC 2-ch/5.1ch (optional), MPEG-4 AAC+SBR 2-h/5.1ch
(optional), Dolby Digital (optional), DTS (optional)
Audio formats .MP3, MPA, M4A, WMA (optional), Ogg, WAV, AAC
Video modes
1080i, 1080p, 720p, 576p, 480р, PAL, NTSC
Video сodecs MPEG1/2 MP@HL, H.264 HP@level 4.1, MPEG4 part 2 (ASP), WMV-9 (optional), VC1 video, XviD; 3D and HD video supporting (up to 40 Mbit / s and above)
Video containers MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV
Image formats JPEG, PNG, BMP, GIF, RAW
Subtitles DVB, SRT, text MKV
Playlist formats M3U
Standard set MAG254/255 Set-Top Box, user manual, Mini jack cable to RCA (A/V), Power adapter 12V 1A, remote control, 2 AA batteries, packaging
