Portrait Displays har frigivet 2021-udgaven af sin Calman-software til kalibrering af TV-skærme og monitorer. Med auto-kalibrering til bl.a. LG 2021 OLED TV forsimples processen.
Calman 2021 software
Calman er en af de mest velkendte løsninger til kalibrering af skærme; primært professionelt men i stigende grad også til privatbrugere. 2021-udgaven byder på flere nyheder, herunder en 'Aurora Color Engine'.
- "The Aurora Color Engine is the biggest upgrade to Calman since AutoCal," siger Tyler Pruitt, Technical Evangelist hos Portrait Displays. "We’re very happy to be the ones able to offer Calman users the latest in color technology time and time again."
For at komme i gang kræves Calman-softwaren, supporteret måleudstyr (til målinger på skærmen) og en mønster-generator (til de testmønstre, der måles på). Sidstnævnte kan enten komme fra en ekstern HDMI-boks eller være mønstre indbygget direkte i nyere high-end TV.

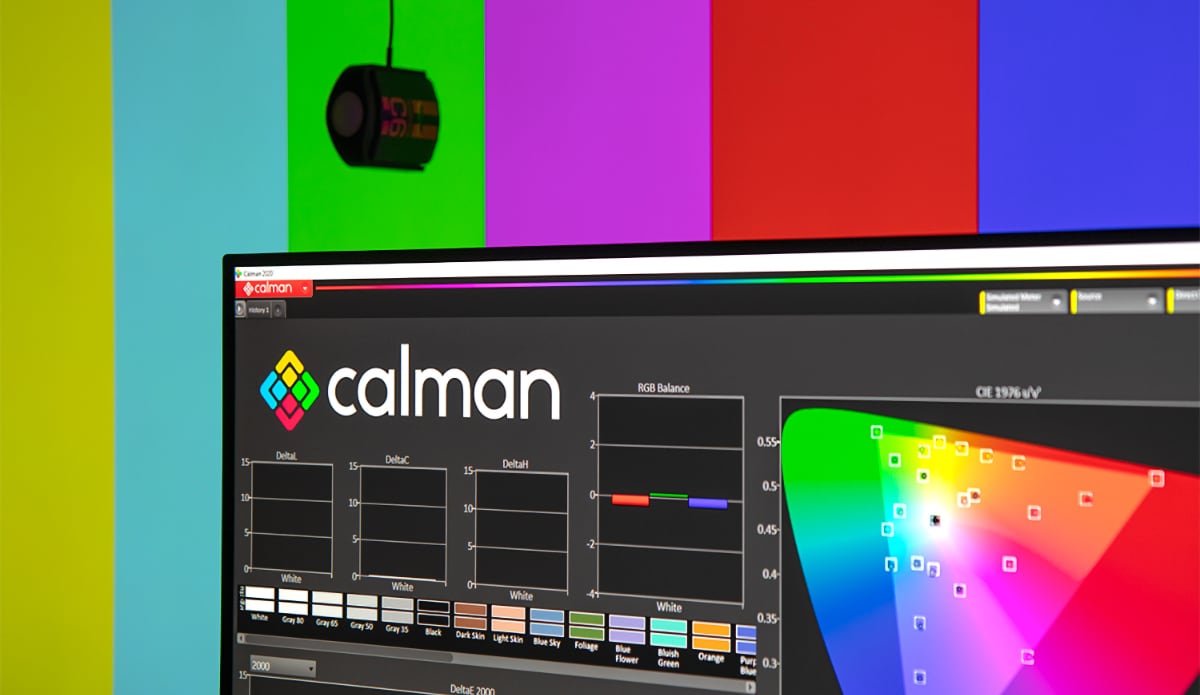

En måleenhed måler skærmens karakteristika og sender input til Calman-softwaren
Auto-kalibrering af TV
I senere år har et stigende antal high-end TV fået understøttelse af Calman AutoCal, hvilket er en forkortelse for auto-kalibrering. Den mere automatiserede process gør det lettere og hurtigere at kalibrere TV. Kig efter TV-modeller, som er 'Calman Ready'.
Læs også: Apples 'Farvebalance'-kalibrering kommer også til ældre Apple TV
Calmans 2021-opdatering åbner for 2021 LG TV foruden modeller fra 2020 og tidligere fra LG, Samsung, Sony og Panasonic. Understøttelse af 2021 TV-modeller fra andre mærker forventes klar senere.
Til forbrugere findes særskilte software-udgaver kaldet Calman Home til hhv. LG, Panasonic, Samsung og Sony TV. Hver version koster 145 dollars (ca. 900 kroner). Den fulde Calman Ultimate-pakke, henvendt til profesionelle, koster knap 3000 dollars.
Calman 2021 - ændringer
| New Features:
- Added Aurora Color Engine support. Details included below (all license levels with 3D LUT Support)
- Added new Pattern Insertion option that will insert a patch based on patch count for panel measurement temperature stabilization (under Application Measurement Options)
- Added Calman Ready AutoCal support for LG 2021 Series TVs (Alpha 9 G4 OLED C1, G1, M1, R1, Z1, LCD QNED99, QNED95, NANO99, NANO95)
- Added Pattern Generator support for LG 2021 series TVs (Alpha 9)
- Added Calman Ready AutoCal support for LG PRO OLED Studio TVs
- Added new ASUS HDR Monitor Calibration workflow
- Added ability to lock design mode on custom workflows
- Sorted Display Specific EDRs for the C6 to be separated from Generic EDR listings. All the display specific EDRs are at the bottom of the list
- New C6 EDRs include Samsung QLED 2020, OLED TV 2019, 2020, 2021, Apple iPhone OLED, iPad Pro 2018 2020, Dell UP3221Q, LG HU810/AU810 Laser PJ, FSI XM311K, Sony BVM-HX310
Aurora Color Engine Details:
- Completely new color engine built from the ground up using the latest color science research
- Next generation Unity Grayscale technology for 3D LUT neutral spline bypass when using a 1D LUT + 3D LUT for calibration
- New 3D LUT technology reduces or eliminates posterization and banding
- Improved MatrixLUT formula for calibration
- Added new 13pt fixed grid option patch set
- Support for these patchsets: (MatrixLUT, LightningLUT, Fixed Grid 9pt, 13pt, 17pt, 21pt) IRP is not supported
Aurora Color Engine Supported Displays:
- LG Supported displays (Calman display selections): 2018 Alpha 9 C8, E8, G8, W8, 2019 Alpha 7 G2 NanoCell, 2019 Alpha 7 OLED B9, 2019 Alpha 9 G2 OLED R9 Z9 W9 W9S E9 C9 NanoCell SM99, 2020 Alpha 7 G3 OLED BX, LCD NANO090 NANO085, 2020 Alpha 9 G3 OLED CX GX WX ZX, LCD NANO99 NANO097 NANO095, 2021 Alpha 9 G4 OLED C1, G1, M1, R1, Z1, LCD QNED99, QNED95, NANO99, NANO95, LG PRO OLED
- Dell supported displays (Calman display selections): Dell – UltraSharp UP3221Q 3D LUT (USB) (SDR/HDR)
- Asus supported displays (Calman display selections): Asus – ProArt Monitors 3D LUT (SDR/HDR when supported by display)
- BenQ supported displays (Calman display selections): BenQ – PV270/SW270C/SW271C/SW321C (SDR)
Resolved Issues:
- Fixed Beta reported issue removed automated source settings to prevent overwriting user source settings when progressing through Samsung Autocal or any home AutoCal workflow
- Fixed Beta reported issue going backwards (Clicking “BACK”) from some Home workflow pages will make the some previous pages charts/data disappear
- Fixed Beta reported issue of some files not being updated when upgrading from Calman 2020 R2
- Fixed Beta reported issue where FILMMAKER and FILMMAKER HDR modes were not set correctly for LG 2021 A9 displays
- Fixed Beta reported issue with LG LCD SDR calibration recommendation. Workflow and guide updated to suggest full screen pattern window
- Fixed Beta reported issue for LG workflow SDR targets being incorrect
- Fixed compatibility issue with Photo Research PR-788 introduced with latest FW update
- Fixed issue where Save Prompt appeared behind pattern window
- Display Specific professional workflows now default to DEITP AutoCal formula
- Fixed critical failure on Dell UP3221Q SDR calibrations
- Fixed connection issues for LG TV’s on non-english devices
Known Issues:
- Dell UP3221Q calibration for SDR Presets S5 and S6 will show an error message pop up after completing. The data is uploaded correctly, but if s5 and s6 are included in a larger sequence, the error will stop the sequence |
